What should be paid attention to when ordering prefabricated houses

Due to the increase in demand for prefabricated houses, many unprofessional manufacturers and intermediaries have entered the industry, and many products of uneven quality have appeared on the market. This also brings certain risks to consumers when purchasing prefabricated houses. To ensure the reliable quality of the prefabricated houses purchased, we need to pay attention to the following points when ordering:


1. Choose a manufacturer with strength, scale, and reputation: choosing a reputable manufacturer can guarantee product quality and after-sales service; a large-scale factory means that the product is more mature, and basically, there will be no quality problems. You can learn about it through the manufacturer's official website, e-commerce platform, and other channels.


2. Understand the material and process of the product: It is necessary to understand the material. Poor materials will affect the performance and service life of the prefabricated house, so try to choose high-quality materials when ordering.


3. Check factory qualification and project experience: Since the prefabricated house industry has a certain threshold, we need to check whether the company has obtained a professional production qualification certificate before placing an order, and we can check the project cases that the factory has done in the past to judge whether the factory is trustworthy.


Suzhou Zhongnan Steel Structure Co., Ltd. has produced decades of professional prefabricated houses and steel structures. It is a high-tech enterprise certified by the state and participating in formulating prefabricated house industry standards. With high-quality products, excellent technology, and an excellent reputation, it is highly evaluated in the prefabricated house industry. The company has rich project experience at home and abroad and has supplied container hotels for Qatar World Cup fan villages. Its products are exported to Southeast Asia, Europe, the Middle East, America, Australia, Africa, and other regions.

Detailed parameters of prefab house of Suzhou Zhongnan Steel Structure Co., Ltd.

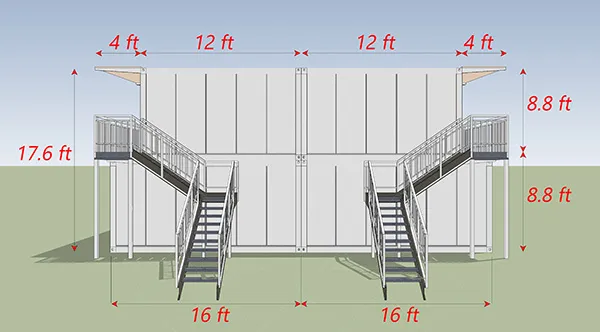

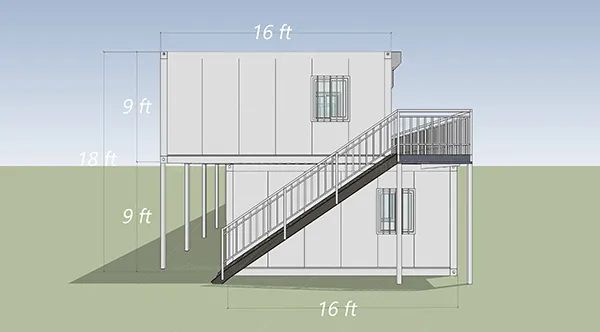

		Outer dimension: 6055mm*2990mm*2896mm
Parameter index		Design period	20 years	Wind resistance	0.50KN/m³
		Sound insulation	Sound insulation ≥ 25dB	fire performance	Grade A
		waterproof performance	Organized internal sewer drainage	Seismic performance	level 8
		ground live load	2.0KN/m³	roof live load	1. CKN/ m³
Outer size: 6055*2990*2896			Configuration instructions		quantity
1	top frame		Main beam: 2.5mm galvanized form beam, width 180mm		4 sticks
			Item beam: galvanized C80*1.3mml16 round tube		4 sticks
	Bottom frame		Bottom main beam; 2.5mm galvanized forming beam, width 180mm		4 sticks
			Bottom beam: 50*100mm square tube× 1.2mm		9 sticks
	column		2.5mm galvanized column, 150mm*210mm		4 sticks
			Inner hexagon bolt		48
	corner fittings		Galvanized corner piece: 150mm*210mm, thickness 4.0cm		8
	surface treatment		Electrostatic spray paint treatment ( DuPont plastic powder )		1 set
	bread item		1.2mm sea container roof, fully welded and spliced		1 set
	top insulation		50mm glass wool insulation cotton with tinfoil		1 set
	Z -fold		1.5mm galvanized Z- folding piece, painted		4 sticks
	Downspouts		50mm, PVC downpipe		4 sticks
	pan sink		Integrated groove for flashing and edging at the bottom of the wall panel		1 set
2	Ceiling tile		0.35mm thick, 831 color steel ceiling tile		1 set
3	wall panel		1150 type, 75mm thick, 0.35mm steel plate, rock wool density 70kg/ m³		1 set
4	Door		Special door for packing box, W840mm × H2035mm, 0.5mm panel, fireproof lock		1 set
5	window		Plastic steel sliding window, V1125 × H1100mm, hollow + anti-theft		2
6	Fireproof floor		18mm fiber cement board 1177 × 2820		5 sheets
7	floor decoration		1.6mm PVC plastic floor leather, hot-melt welded seam		1 set
8	interior + accessories		0.5mm color steel column hemming, PVC baseboard ( brown )		1 set

Because prefabricated houses are often used for earthquake relief, prefabricated houses are required to have a certain earthquake and wind resistance. Whether it can have a good earthquake and wind resistance depends on two aspects.


First, the structural design of the prefabricated house itself and the selection of materials. The main frame of the prefabricated house produced by Zhongnan Steel Structure Co., Ltd. is made of special steel, and high-strength bolts connect the structure; the wall panels are made of color steel composite board thickness 75mm, core insulation material glass wool, bulk density ≥ 2.0KN/m³, combustion performance is Class A non-combustible, board surface is 0.35mm thick color steel plate, double-sided film, edge sealing around, strong heat insulation, sound insulation, and fire resistance. The combined house is an integral structure, and high-strength bolts connect the modules. It is durable and has strong deformation resistance.


Second, whether the prefabricated house has good seismic and wind resistance performance also depends on the construction of the on-site workers. Workers need to strictly follow the relevant standards during installation to ensure the safety and stability of the structure. Therefore, it is necessary to choose an experienced manufacturer for cooperation so that there will be technical engineers to guide the whole construction process. Make sure that the prefabricated house can be installed correctly and safely.


I hope this article can help you and let you choose the right prefabricated house manufacturer for cooperation.
