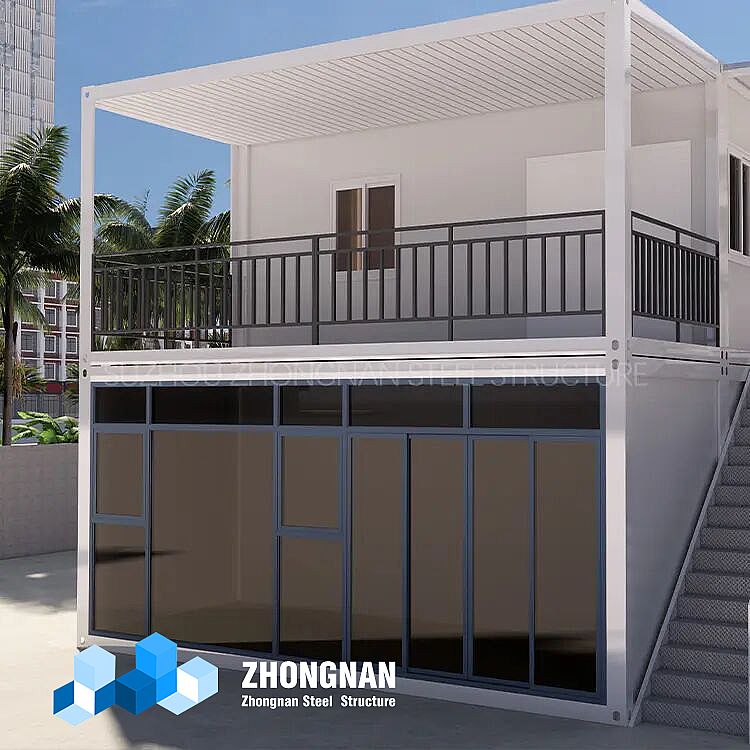

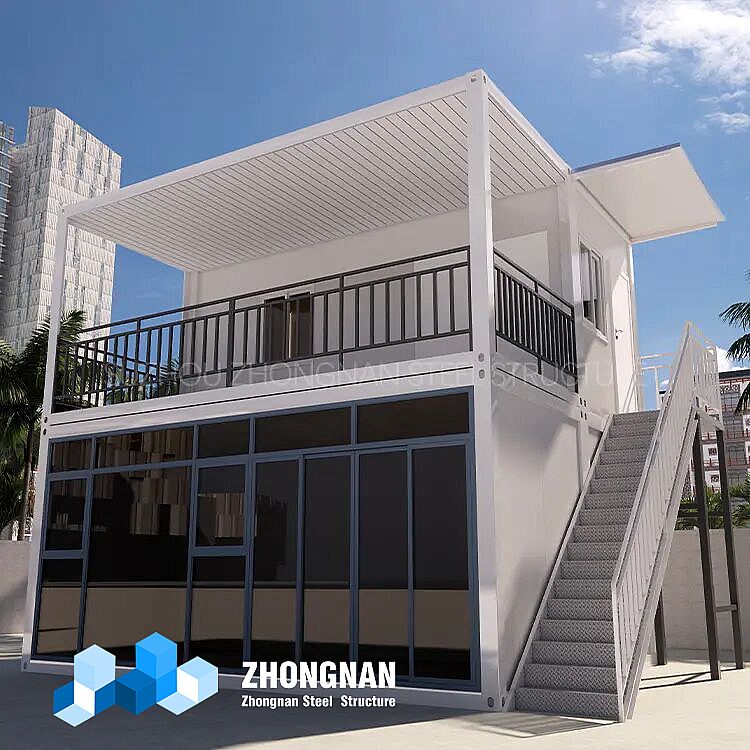

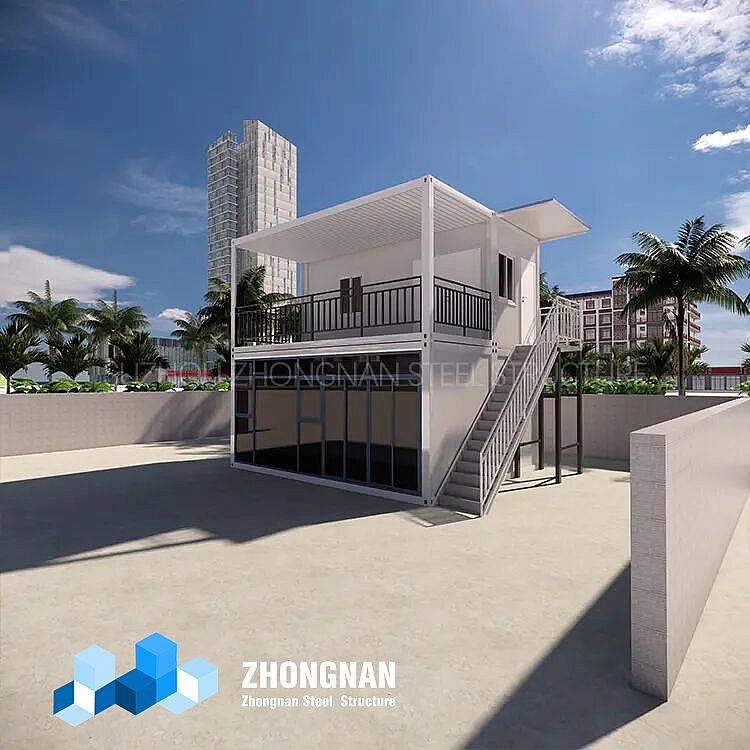

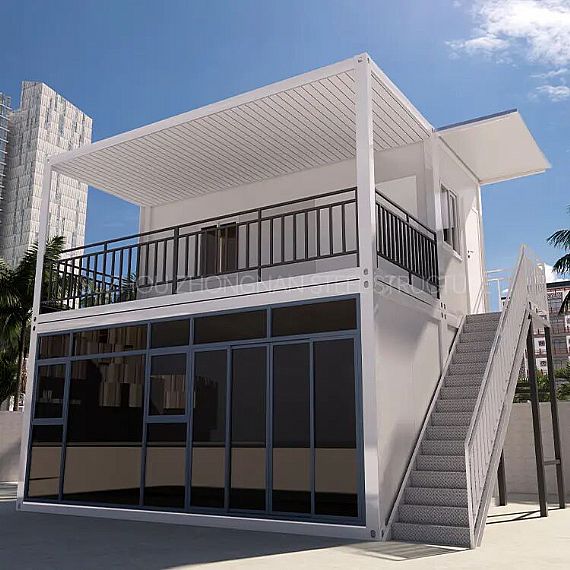

This is a flat pack container house specially designed by our designer for Southeast Asia. It has two floors, and the lower floor is a tempered glass curtain wall, which has good lighting and can be used as a small store. The upper floor can be used for rest and lodging. Its staircase is external and does not take up the space inside.
1C | 2E | 3B | 4B |
Assemble container house | ||
Bottom | Frame structure | 2.5mm thick profiled steel |
Floor | MGO board, waterproof, fireproof (Option Fiber cement) | |
Floor finishes | 1.8mm PVC flooring (extra cost) | |
Roof | Frame structure | 2.3mm thick profiled steel |
Outside cover | 0.426mm steel sheet | |
Insulation | glass wool | |
Ceiling | 0.25mm steel sheet bottom tile | |
Corner post | 4.5 cold rolled steel profile, galvanization, welded (160mm*160mm) | |
Wall panel | Sandwich panel with 50mm rock wool | |
Window | Aluminum alloy windows with dimensions 925mm*1200mm (3mm single glass) | |
Door | Steel door with dimensions 925mm*2035mm | |
Electricity | Light, Switch, Socket, distribution box, breaker, and wire | |
Painting | Automatic galvanizing and baking paint spray molding | |
Exterior size | 5950 (L)*3000 (W)*2800 (H) |
