This project in Shanghai uses a standard flat-pack container house as a two-story office building. The advantages of using a flat pack container house are that the top and bottom are prefabricated in the factory and only require installation of the wall panel and accessories. The wall panel installation is simple and can be connected by buckle or screws. The project features a corridor with a glass curtain wall, a toilet container house with seat or squat models, and various sandwich panel options, including rock wool, glass wool, EPS, and PU. The exterior size of the flat pack container house is 6058(L)*2438(W)*2896(H). The project is manufactured by Suzhou Zhongnan Steel Structure Co., Ltd, a professional enterprise that produces residential container houses, color steel sandwich panels, steel structures, and color steel prefab houses.
REF: 1620
The building features a glass curtain wall in the corridor that helps to bring in natural light, which enhances the feeling of luxury. The project also includes a toilet container house, and customers can choose a seat or squat model.
Delivery Details

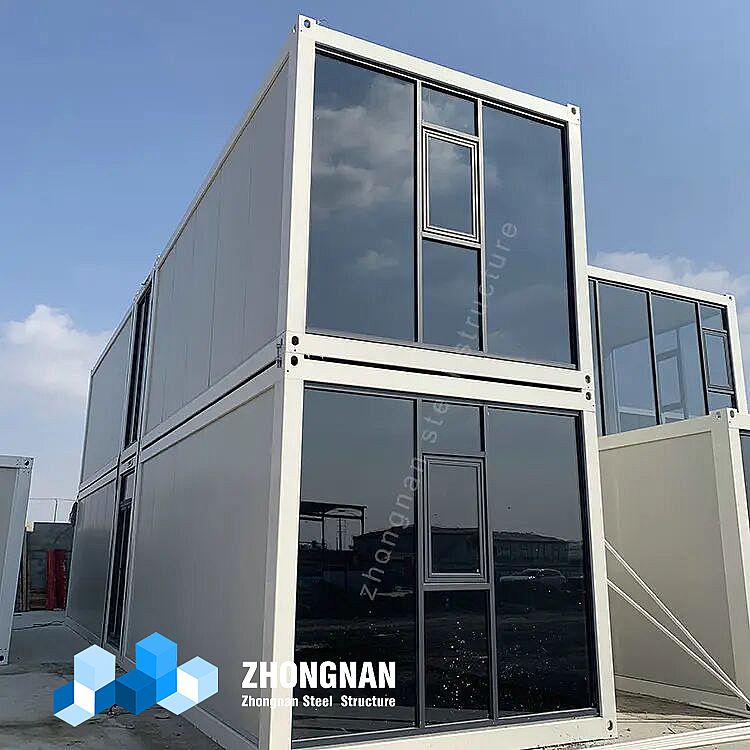

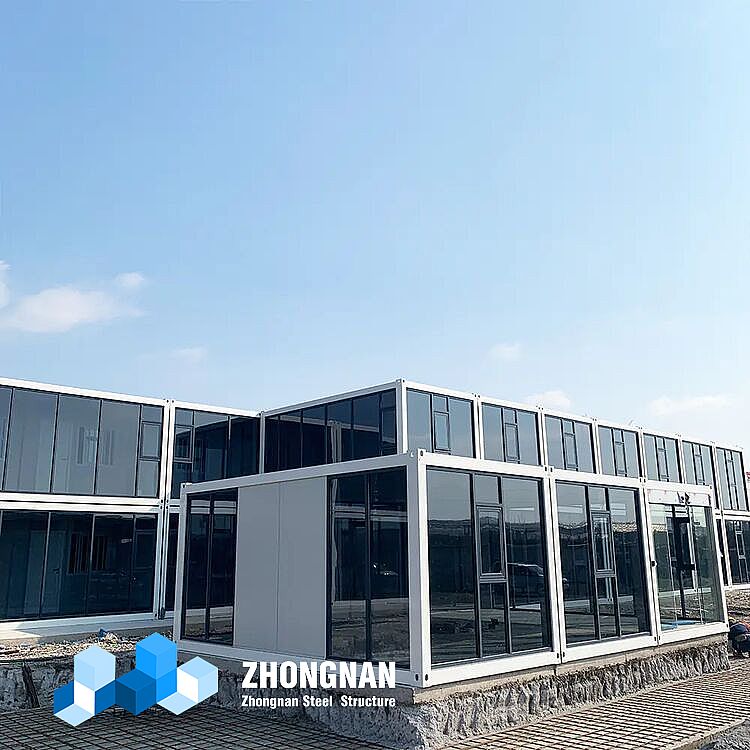

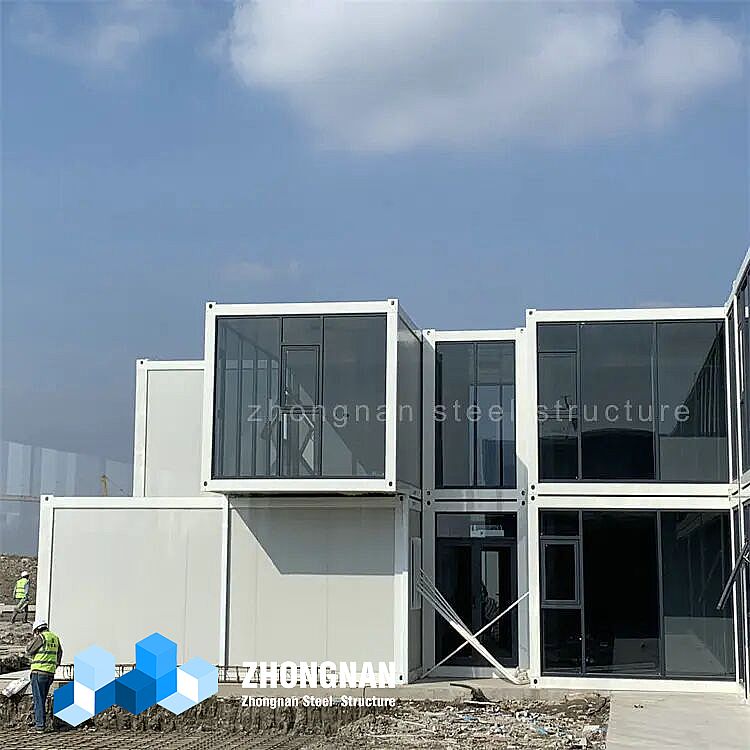

This project is located in Shanghai. The entire project uses a standard flat pack container house, a two-story office building.
The advantage of the flat pack container house is that the factory prefabricated the top and bottom, and the customer only needs to install the wall panel and accessories.
The installation of the wall panel is also very simple. It can be connected by a buckle or can be fixed by screws.
Our factory mainly produces rock wool sandwich panels, glass wool sandwich panels, EPS sandwich panels, and PU sandwich panels. There are many types of your choice.

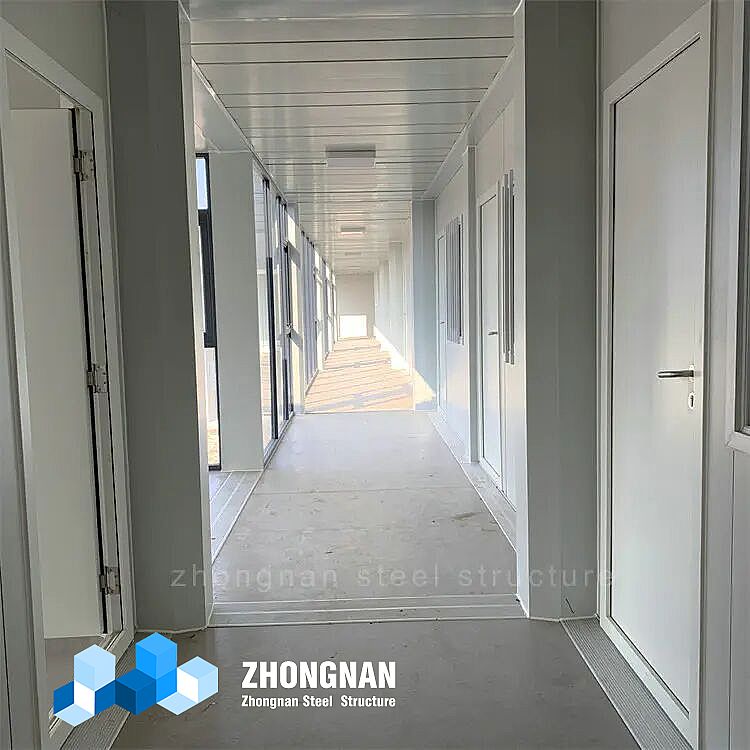

The flat pack container house office building has a corridor and is equipped with a glass curtain wall to protect it from wind and rain. There is a toilet inside the building, built with our toilet container house, you can choose to seat or squat model inside.
 |
 |
 |
 |
|||
| 1A | 2D | 3A | 4C |
| Flat pack product details | ||
| Bottom | Frame structure | 3mm thick profiled steel |
| Floor | Fiber cement,waterproof, fireproof (Option MGO) | |
| Floor finshes | 2.0mm PVC flooring | |
| Roof | Frame structure | 3mm thick profiled steel |
| Outside cover | 0.45mm steel sheet | |
| Insulation | 100mm glass wool | |
| Ceiling | 0.5mm steel sheet bottom tile | |
| Coener post | 5.0mm cold rolled steel profile, galvanization, welded (Flooring:210mm*150mm*200mm Bottom:210mm*150*200mm) | |
| Wall panel | Sandwich panel with 75mm rock wool | |
| Window | Sliding UPVC profiled windows with dimension 800mm*1100mm (double glass) | |
| Door | Steel door with dimension 840mm*2035mm | |
| Electricity | Light, Switch, Socket, distribution box, breaker and wire | |
| Painting | Automatic galvanizing and baking paint spray molding | |
| Exterior size | 6058 (L)*2438 (W)*2896 (H) | |
Suzhou Zhongnan Steel Structure Co., Ltd is a manufacturing integrated production enterprise, a professional manufacture of residential container houses ( including assemble container house, flat pack container house, shipping container house, scenic hotel exhibition house), color steel sandwich panels, steel structures and color steel prefab houses.
