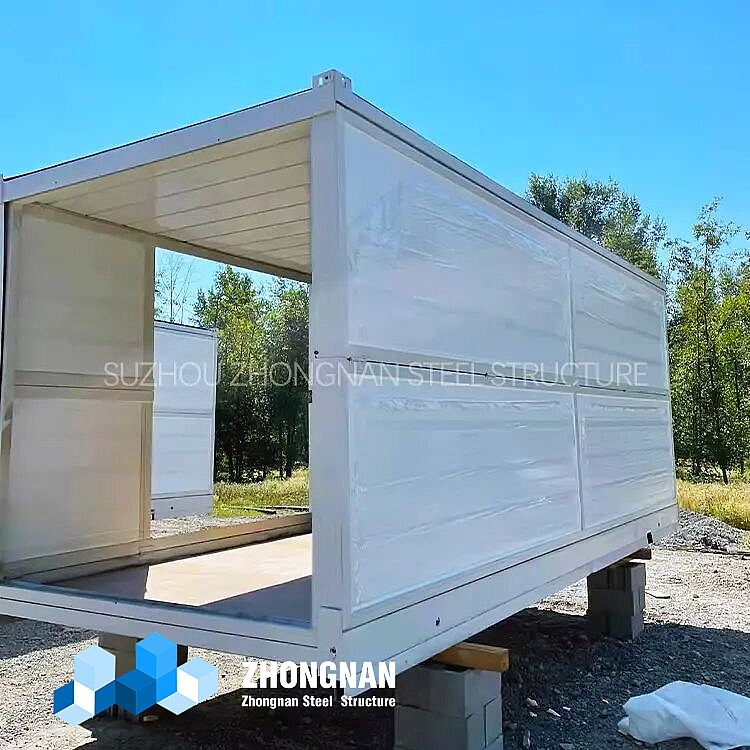

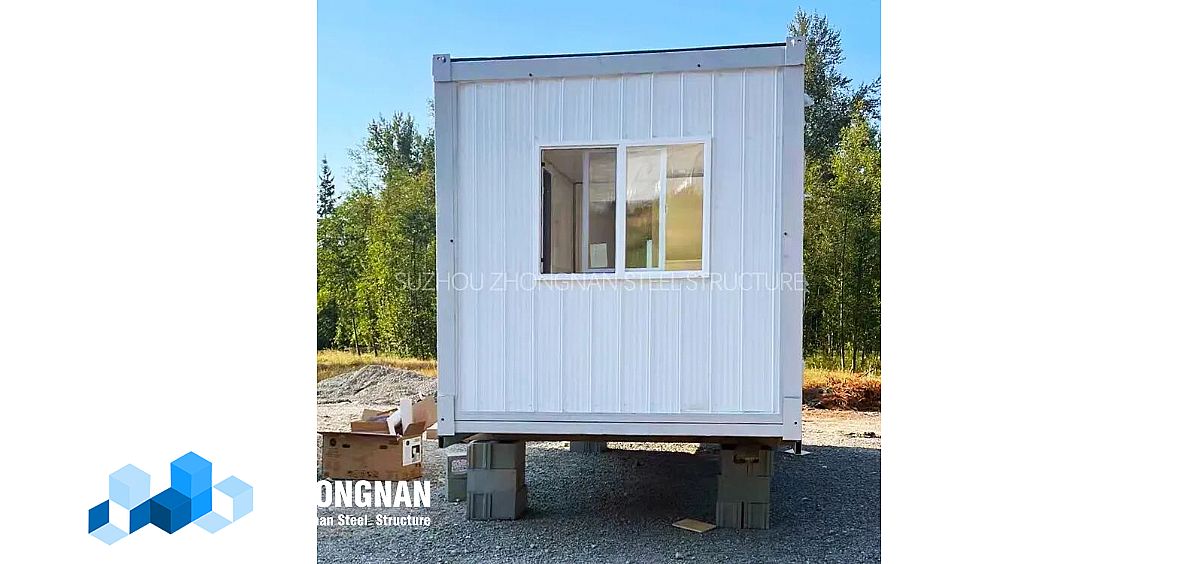

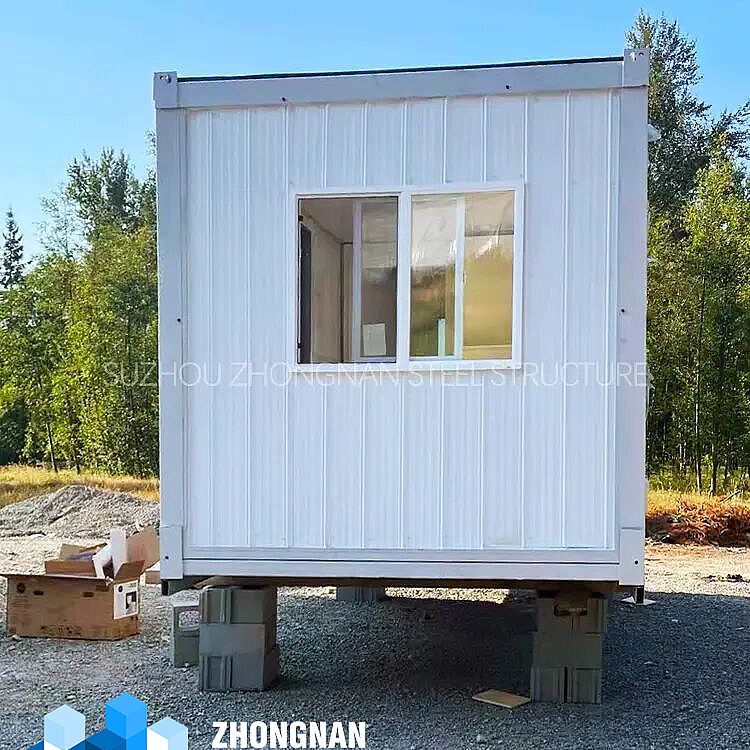

This is a folding container house produced by our company. Unlike other traditional models, the wall panels of this product are customized. Many modules of our folding boxes are customizable, including wall panels, floors, windows, electrical layouts, doors, interiors, and more. The optional modular customization scheme of the folding container house introduced by our factory can meet the needs of most customers.
REF: 1580
Delivery Details
Folding container house is simple and easy to install.Regular exported folding container house size is 2450 (W)X5800 (L)X2500 (H)mm.
It is prefered to galvanized steel,manufactured by advanced equipment, abandon the defects caused by traditional technology.

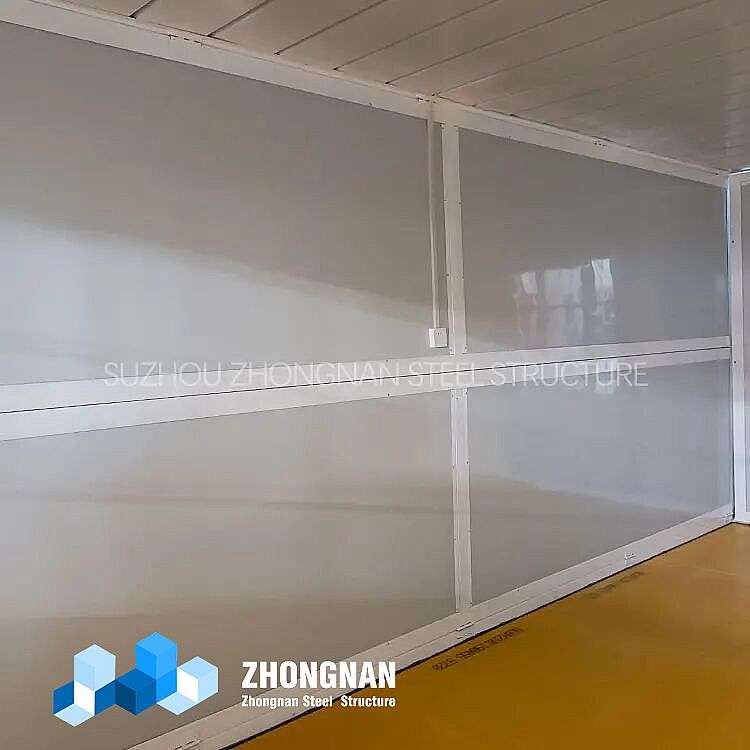

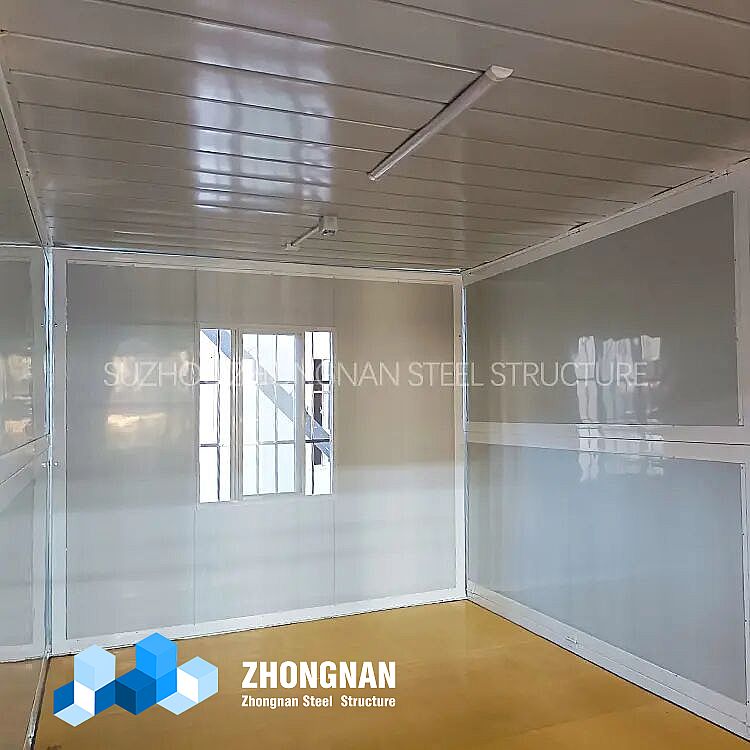

Use 50mm rock wool sandwich panel for wall panel and glass wool for roof panels to make sure good insulation and sound protection.
Modern appearance, optional colors for the walls panel and roof.
 |
 |
 |
 |
|||
| 1B | 2C | 3C | 4A |
| Folding container house | ||
| Material | specification | Raw material |
| Roof steel panel | 0.32×1000mm | Color steel sheet |
| Wall panel | 0.32×50×950mm | Rock wool sandwich panel |
| Bottom beams | 2.3×60×6000mm | Steel beams |
| Square tube | 40×80×1.8mm | Floor square tube |
| Floor | 15×1180×2660mm | MGO board |
| Waterproof folded parts | 1.5×65×80mm | Steel |
| Side wall folded parts | 1.5×65×80mm | PVC |
| Roof beams | 2.7×130×50mm | Steel |
| Waterproof sealing | 40×30mm | Slot seal |
| Door | 50×790×2000 | Steel door |
| Window | 50×925×1200 | Aluminum alloy sliding window |
| Hinge | 14×3 | Steel hinge |
