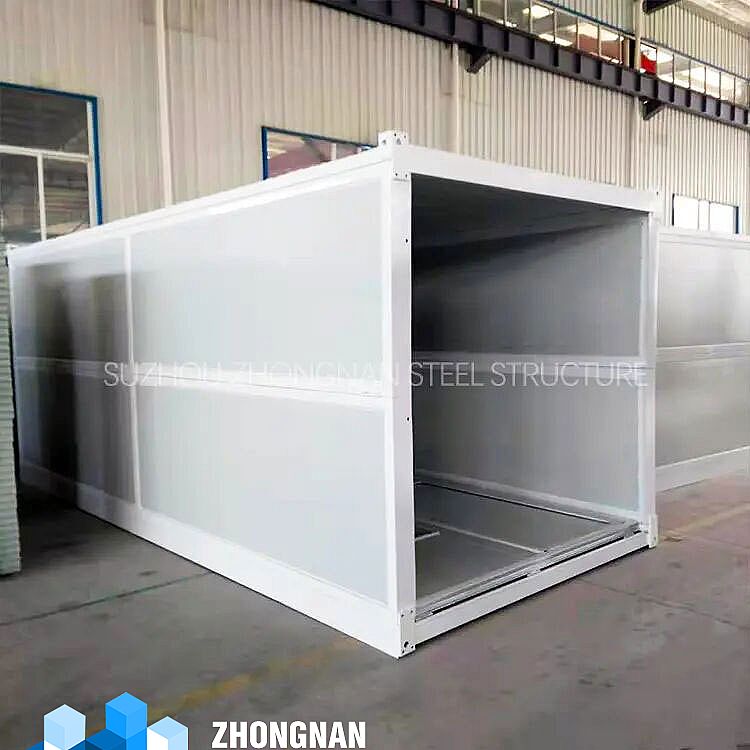

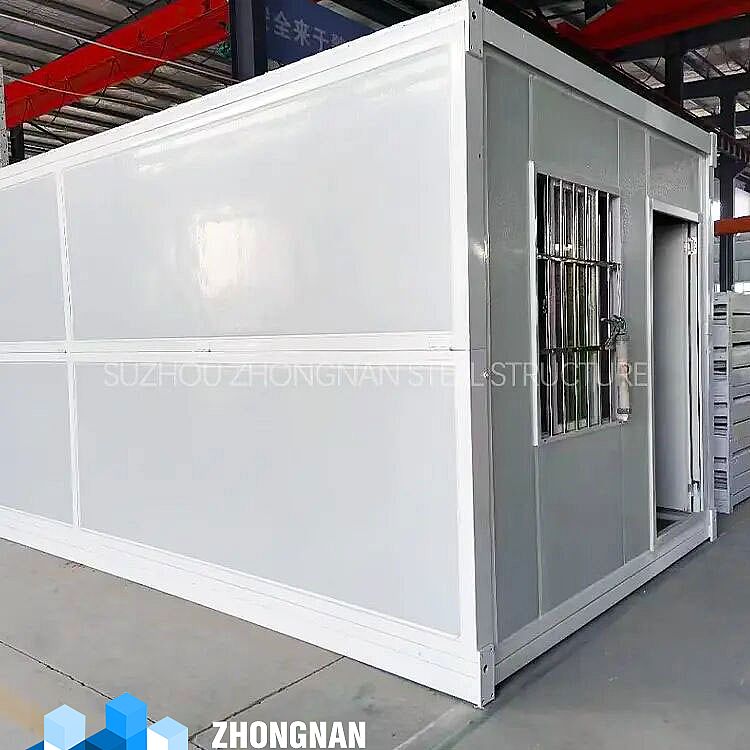

The folding container house is a modified container that can easily fold or decompose all parts, including the main features of the container (side wall, end wall, box roof, etc.), and can be easily reassembled when used again. Specifically, the folding container house comprises of a base, a left-side wall, a right-side wall, a front door wall, a rear-end wall, and a roof. Hinges connect the upper end and the ceiling with movable pins. When the container is not used for loading, the walls and the roof are folded and stored on the base. When customers use it, they can open it, lift the top, erect the walls, and connect them with hinges with movable pins. The folded volume of the folding container house is only one-fifth of the general fixed container house, which can significantly reduce the transportation cost and storage area and space. Folding and installation are easy to operate, saving labor and time, and can save a lot of labor and time costs.
Folding container house (also called collapsible container) refers to the main components of the container (wall panel, roof panel, etc.) can be simply folded or disassembled, and can be easily combined again when used.
Its thickness is only 0.45 meters after being folded. With little space occupation, our folding container house combines the advantages of integrated type and disassemble type in the aspects of transport, storage, saving freight cost and ease of use, becoming the most popular container house product for its incomparable superiority.
Besides, our folding container house has traditional container houses characteristics of firmness, durability and so on.
1B | 2C | 3C | 4A |
Folding container house | ||
Material | specification | Raw material |
Roof steel panel | 0.32×1000mm | Color steel sheet |
Wall panel | 0.32×50×950mm | Rock wool sandwich panel |
Bottom beams | 2.3×60×6000mm | Steel beams |
Square tube | 40×80×1.8mm | Floor square tube |
Floor | 15×1180×2660mm | MGO board |
Waterproof folded parts | 1.5×65×80mm | Steel |
Side wall folded parts | 1.5×65×80mm | PVC |
Roof beams | 2.7×130×50mm | Steel |
Waterproof sealing | 40×30mm | Slot seal |
Door | 50×790×2000 | Steel door |
Window | 50×925×1200 | Aluminum alloy sliding window |
Hinge | 14×3 | Steel hinge |
