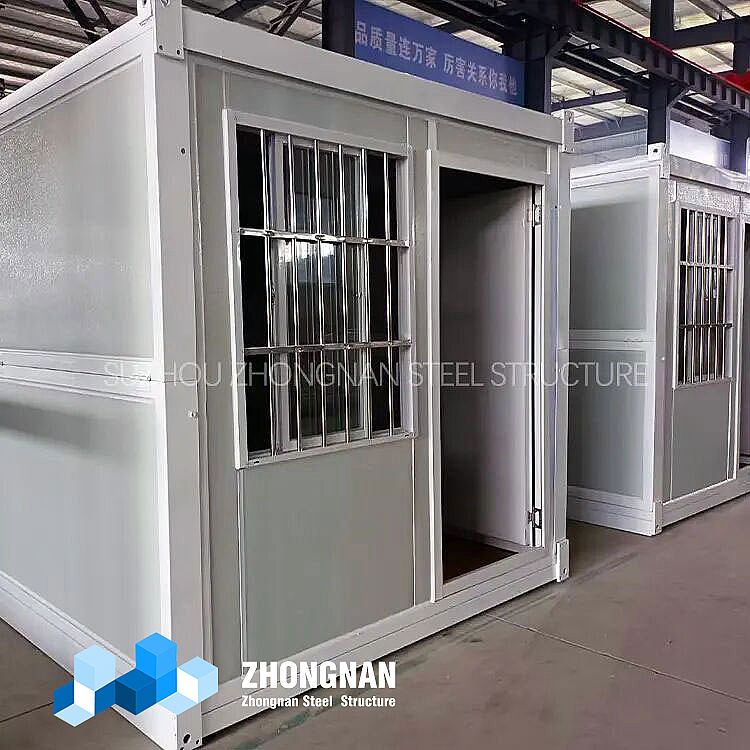

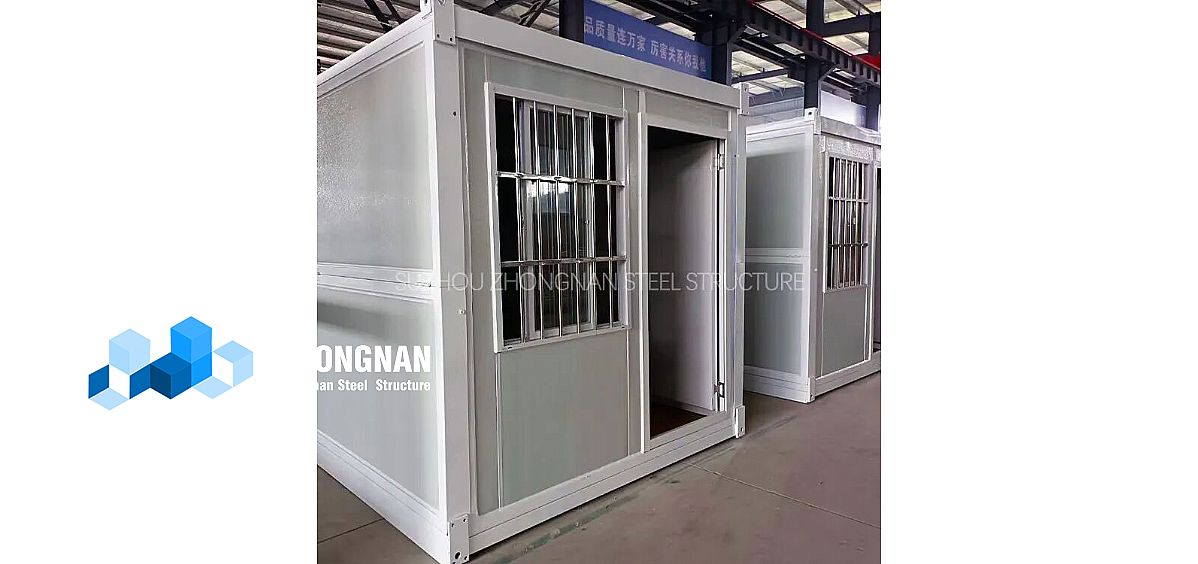

Portable Folding Container House

The top of the Folding container houses produced by our factory is colored steel tile (thickness 0.5mm) corrugated design to help with drainage at the top. As the top is made of customized special materials, there are fewer nail positions on the outer top, which is beautiful and reduces water leakage rate; the window adopts aluminum alloy anti-theft (integrated window sliding series); the door adopts a customized steel anti-theft door. Customized hinges are used at the folding position (the intermediate shaft column is made of customized 304 stainless steel) The side wall of Folding container houses produced by our factory is made of orange peel patterned rock wool board, which has a beautiful appearance and high hardness, and only needs to be glued to fix the wall panel; the Folding Container House body is made of steel plate 200mm * 100mm * 15mm, which is a hanging head for the folding container houses body. Two hanging heads are connected, making it more secure without any safety issues.

REF: 1584



Delivery Details

  • MOQ:
    - 20FT (Can hold 7 sets of assembled container houses)
    - 40FT (Can hold 18 sets of assembled container houses)
  • Delivery Time: 15-30 days
  • Port: ShangHai / NingBo / YiWu / GuangZhou Port
  • Price Term: FOB, EXW, CIF, CFR
  • Payment Term: TT/LC

Contact Us

.

Project Description

Folding container house is simple and easy to install.Regular exported folding container house size is 2450 (W)X5800 (L)X2500 (H)mm.
It is prefered to galvanized steel,manufactured by advanced equipment, abandon the defects caused by traditional technology.
Use 50mm rock wool sandwich panel for wall panel and glass wool for roof panels to make sure good insulation and sound protection.
Modern appearance, optional colors for the walls panel and roof.




1B   2C   3C   4A
Folding container house
Material specification Raw material
Roof steel panel 0.32×1000mm Color steel sheet
Wall panel 0.32×50×950mm Rock wool sandwich panel
Bottom beams 2.3×60×6000mm Steel beams
Square tube 40×80×1.8mm Floor square tube
Floor 15×1180×2660mm MGO board
Waterproof folded parts 1.5×65×80mm Steel
Side wall folded parts 1.5×65×80mm PVC
Roof beams 2.7×130×50mm Steel
Waterproof sealing 40×30mm Slot seal
Door 50×790×2000 Steel door
Window 50×925×1200 Aluminum alloy sliding window
Hinge 14×3 Steel hinge





Product Details
