Folding container houses are used in a wide range of scenarios. Offices, classrooms, dormitories, disaster relief, warehouses, motels, toilets, hospitals, shopping streets, and guardhouses can all be transformed from foldable container houses. Our company provides a full set of customized services: free design CAD and 3D modeling. Size, appearance, color, material, steel thickness, appearance color, anti-rust treatment, wall panels, floor panels, etc. can be customized according to your needs.
REF: 1585
Delivery Details

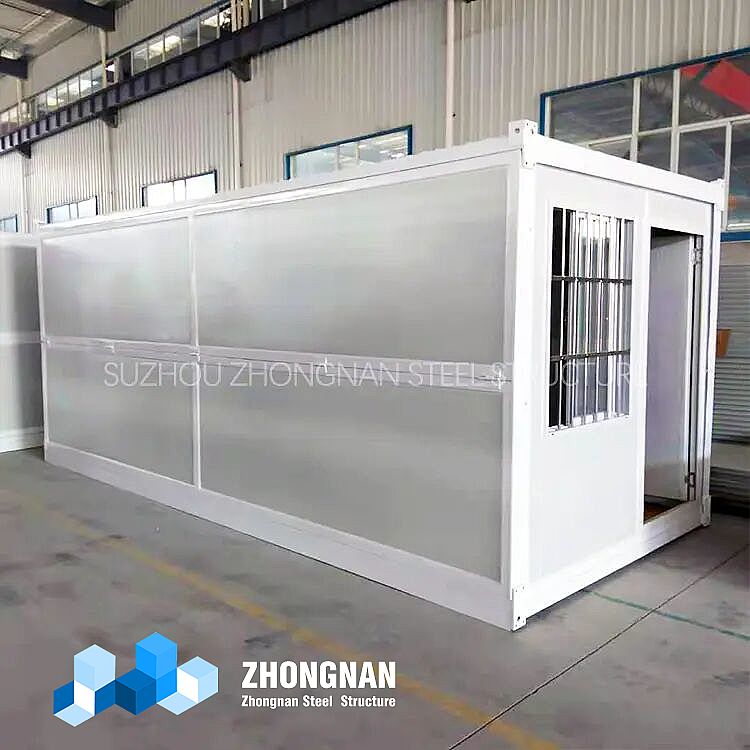

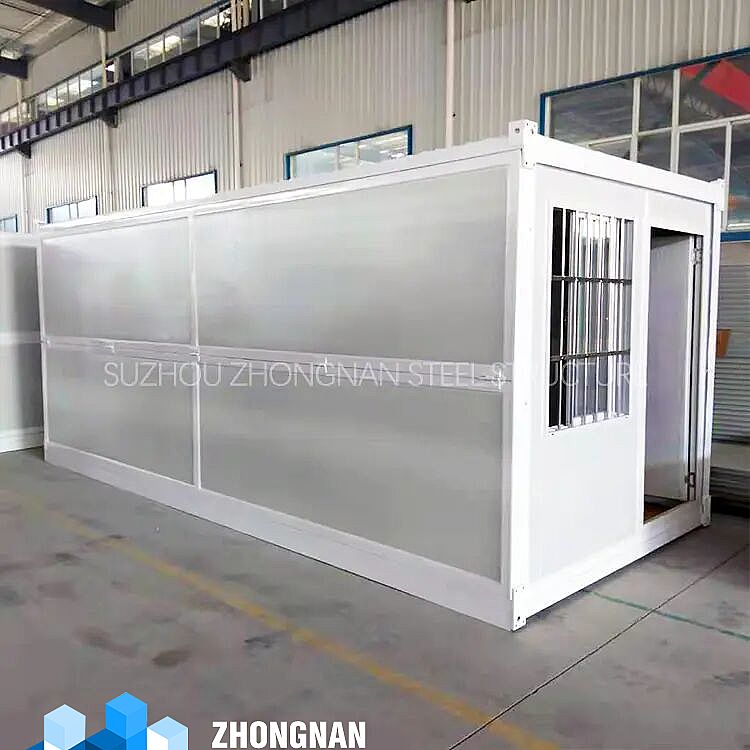

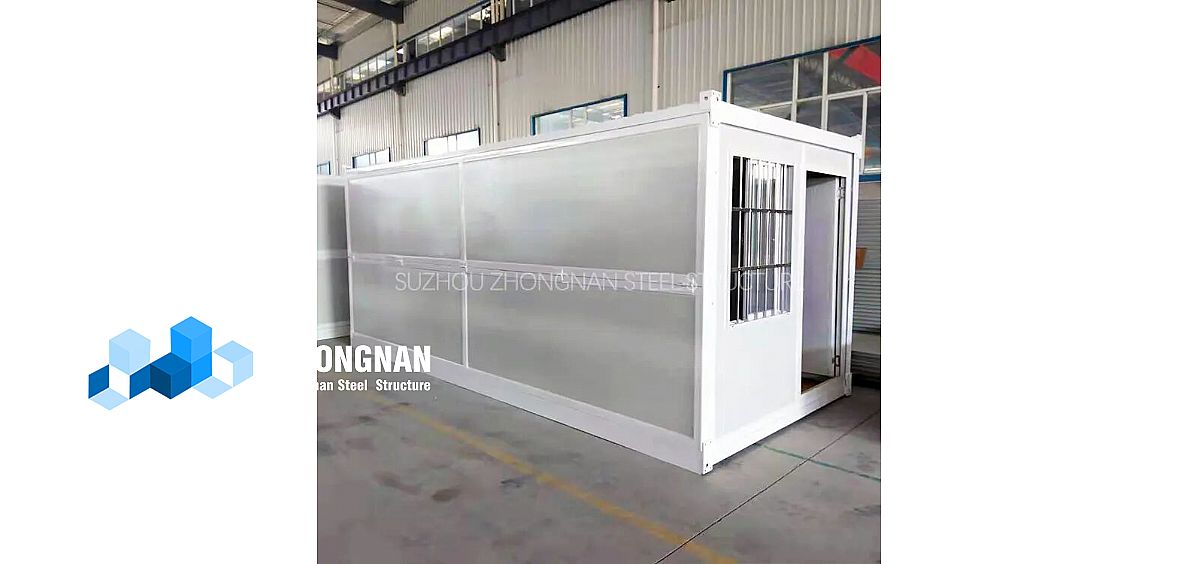

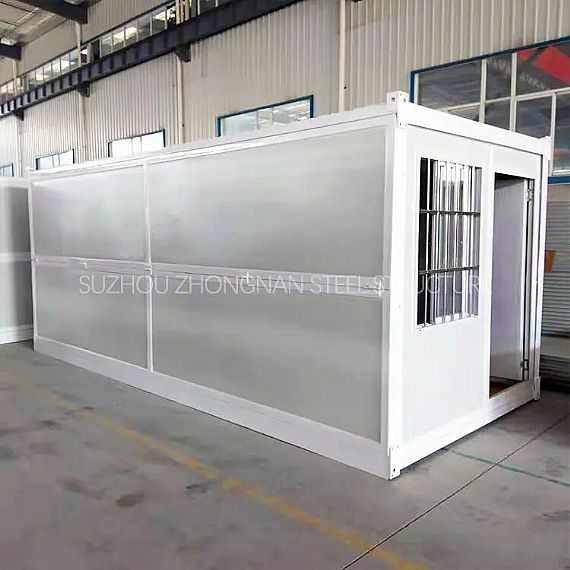

Folding container house is simple and easy to install.Regular exported folding container house size is 2450 (W)X5800 (L)X2500 (H)mm.
It is prefered to galvanized steel,manufactured by advanced equipment, abandon the defects caused by traditional technology.
Use 50mm rock wool sandwich panel for wall panel and glass wool for roof panels to make sure good insulation and sound protection.
Modern appearance, optional colors for the walls panel and roof.
 |
 |
 |
 |
|||
| 1B | 2C | 3C | 4A |
| Folding container house | ||
| Material | specification | Raw material |
| Roof steel panel | 0.32×1000mm | Color steel sheet |
| Wall panel | 0.32×50×950mm | Rock wool sandwich panel |
| Bottom beams | 2.3×60×6000mm | Steel beams |
| Square tube | 40×80×1.8mm | Floor square tube |
| Floor | 15×1180×2660mm | MGO board |
| Waterproof folded parts | 1.5×65×80mm | Steel |
| Side wall folded parts | 1.5×65×80mm | PVC |
| Roof beams | 2.7×130×50mm | Steel |
| Waterproof sealing | 40×30mm | Slot seal |
| Door | 50×790×2000 | Steel door |
| Window | 50×925×1200 | Aluminum alloy sliding window |
| Hinge | 14×3 | Steel hinge |
