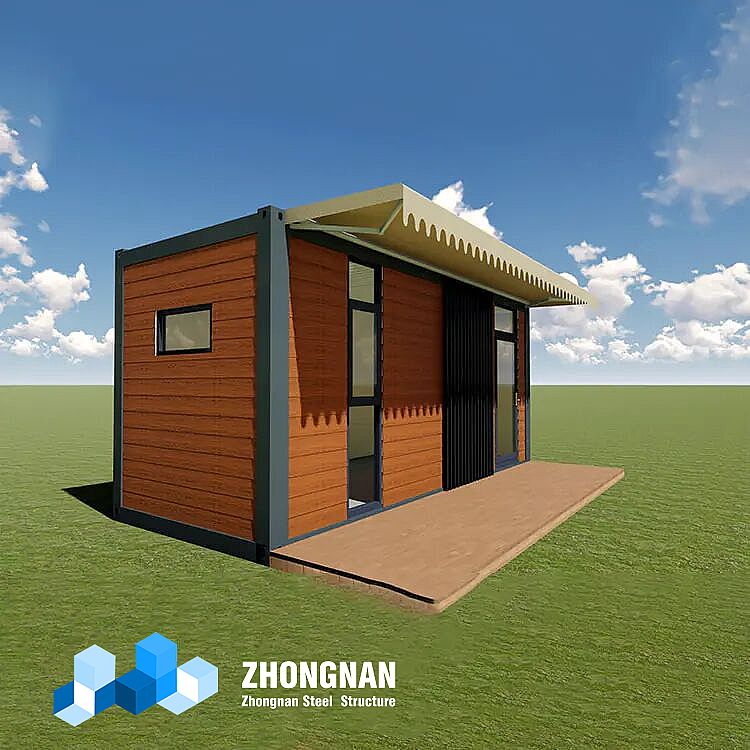

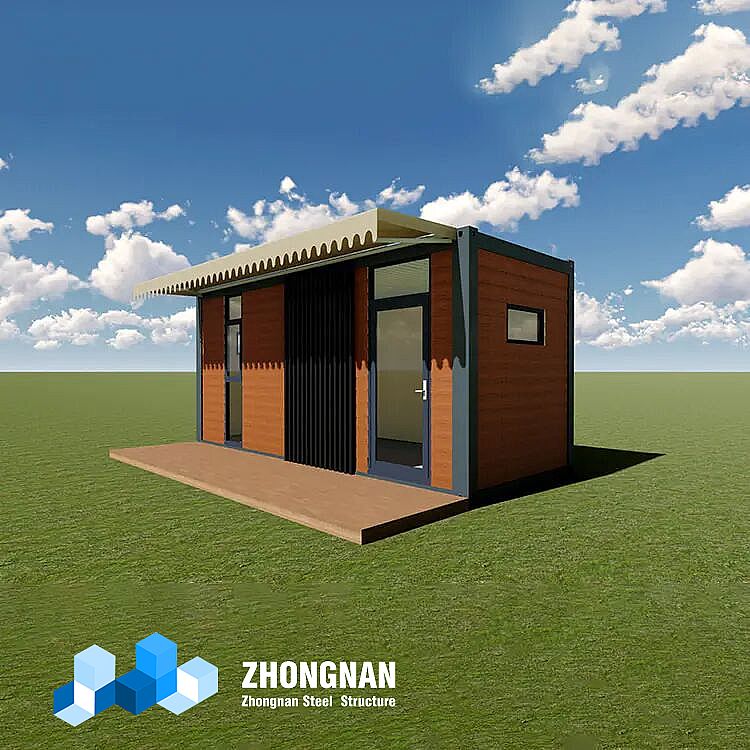

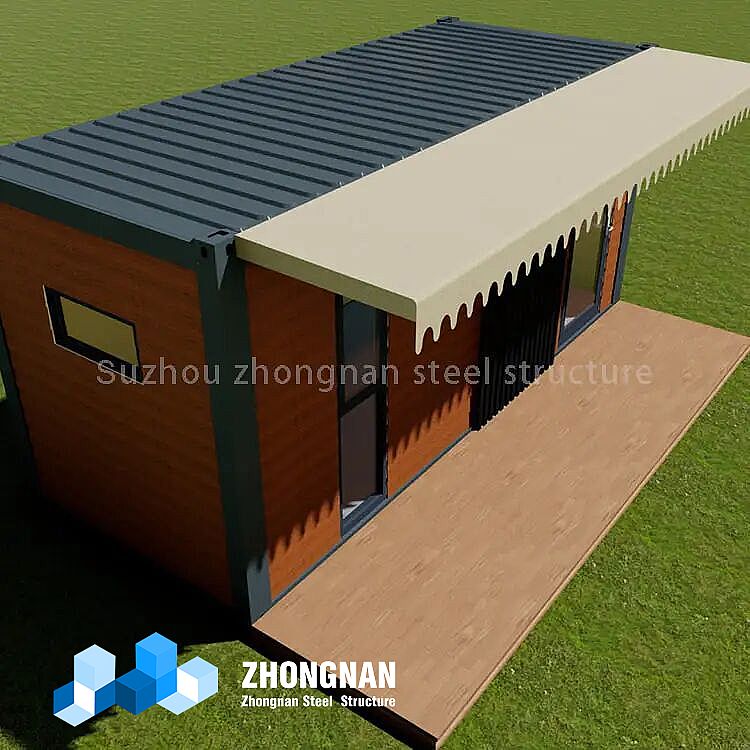

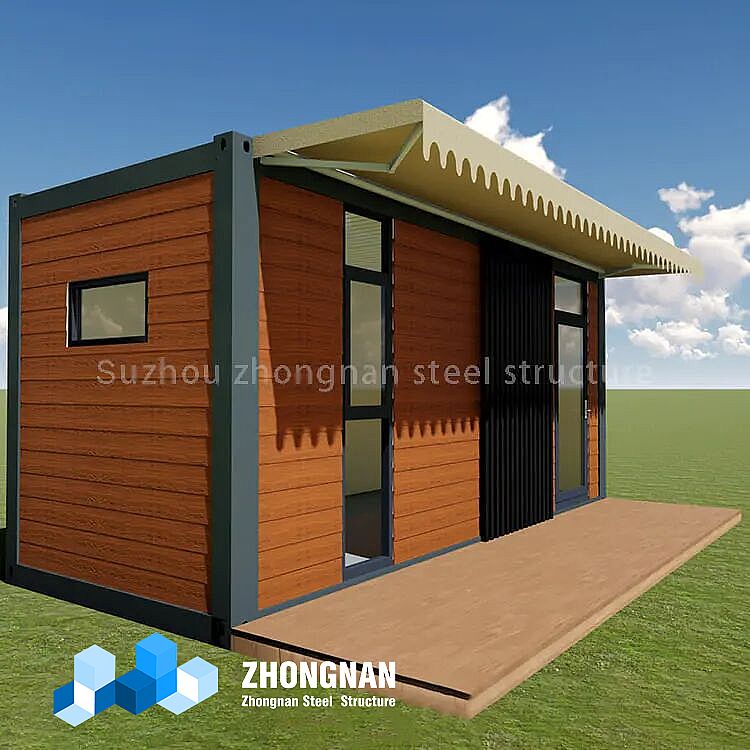

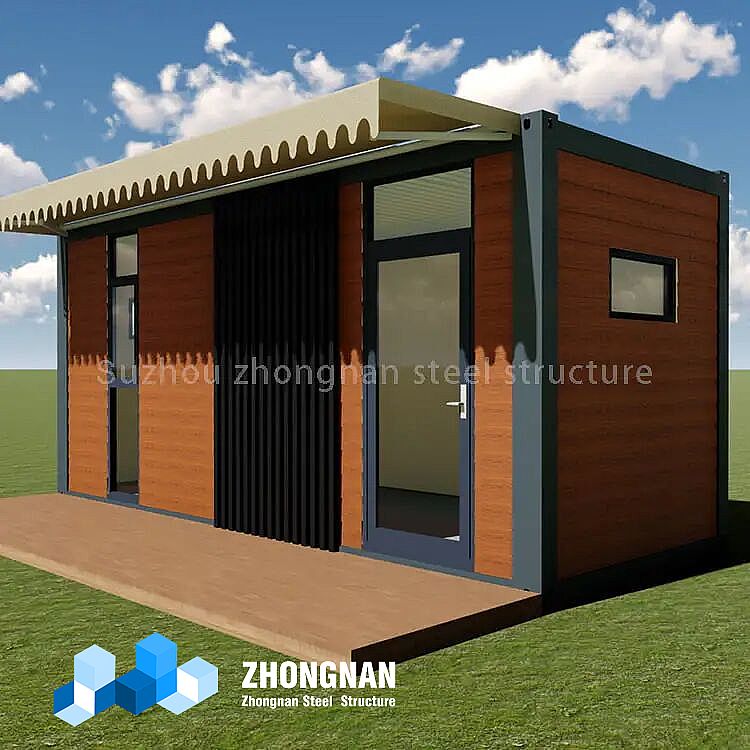

Modular container house is made from flat pack container house’s steel frame, sandwich panels, glass doors, windows and wall cladding. This kind of container can be installed with the help of a crane and is very easy to assemble. The roof and floor are assembled and welded in advance in our factory. Prefabricated wall thickness varies from 50mm, 75mm to 100mm. The sandwich core material is EPS or rock wool depending on the clients’ requirements.
REF: 39
Delivery Details
Modular container house is made from flat pack container houses steel frame, sandwich panels, glass doors , windows and wall cladding. This kind of containers can be installed with the help of crane and very easy to assemble. Roof and floor are assembled and welded in advance in our factory. Prefabricated wall thickness varies from 50mm, 75mm to 100mm. Sandwich core material is EPS or rock wool depends on clients requirement.
| Modular container house product details | ||
| Bottom | Frame structure | 3mm thick profiled steel |
| Floor | Fiber cement,waterproof, fireproof (Option MGO) | |
| Floor finishes | 2.0mm PVC flooring | |
| Roof | Frame structure | 3mm thick profiled steel |
| Outside cover | 0.45mm steel sheet | |
| Insulation | 100mm glass wool | |
| Ceiling | 0.5mm steel sheet bottom tile | |
| Corner post | 5.0mm cold rolled steel profile, galvanization, welded (Flooring:210mm*150mm*200mm Bottom:210mm*150*200mm) | |
| Wall panel | Sandwich panel with 75mm rock wool | |
| Window | Sliding UPVC profiled windows with dimension 800mm*1100mm (double glass) | |
| Door | Steel door with dimension 840mm*2035mm | |
| Electricity | Light, Switch, Socket, distribution box, breaker and wire | |
| Painting | Automatic galvanizing and baking paint spray molding | |
| Exterior size | 6058 (L)*2438 (W)*2896 (H) | |
