20FT Expandable Folding Container House Unit

The 20ft expandable folding container home is a prefabricated house with a kitchen, bathroom, toilet, bedroom, and living area, among other facilities. It's simple to set up on-site in minutes and ready to install when they leave the manufacturer. We use galvanized steel welding techniques to construct the container home's frame, providing great load-bearing capacity and rust resistance. The wall panels are made of fireproof rock wool sandwich material, offering outstanding sound and heat insulation. This 20ft folding container house is strong and adaptable to various applications, including temporary homes, workplaces, hotels, and emergency shelters. We continuously develop and update our products to meet our clients' needs. Furthermore, we provide specialized housing solutions for non-profits and businesses.

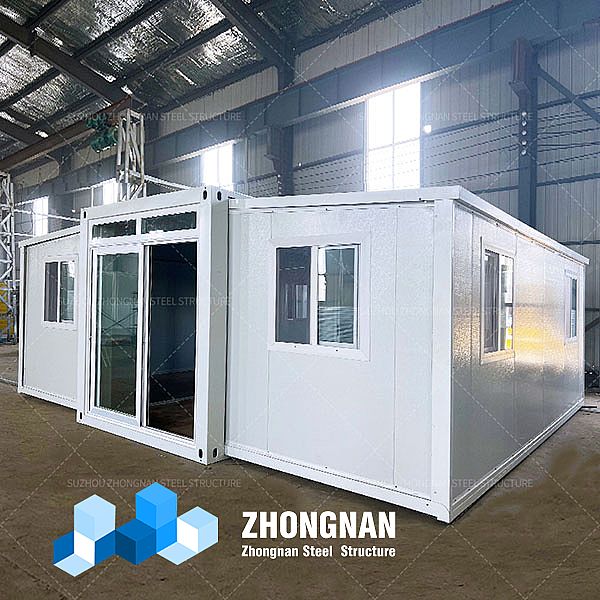

20FT منزل حاوية قابلة للتوسيع بيضاء قابلة للطي - PFC005

REF: PFC005

Delivery Details

MOQ:
- 20FT (Can hold 7 sets of assembled container houses)
- 40FT (Can hold 18 sets of assembled container houses)
Delivery Time: 15-30 days
Port: ShangHai / NingBo / YiWu / GuangZhou Port
Price Term: FOB, EXW, CIF, CFR
Payment Term: TT/LC

Contact Us

.

Product Features:

The frame is made of galvanized steel, which adopts welding technology, has good load-bearing performance, and is not easy to rust.

The wall panels are fireproof rock wool sandwich panels with good sound insulation, heat insulation, and flame retardant properties.

Available in a variety of sizes and internal configurations.

Advantages of Expandable Container Houses

Expandable container homes provide a special combination of strength and flexibility. Their folding feature allows for quick deployment and compact storage and makes them appropriate for a range of settings. Their ability to fold out components allows them to transform from a small unit into a fully complete home with separate living areas.
Expandable containers offer a great deal of customization. Options include simple, functional layouts as well as more complex designs with numerous levels or large, open-concept living rooms. These homes can be customized to meet the needs of their tenants with a range of exterior finishes, unique architectural features, and interior furnishings.
These buildings' natural architectural qualities encourage the use of fewer building materials. They may include sustainable features like solar panels or rainwater collection systems, making them space-efficient and possibly environmentally friendly.

Product Parameters

Basic Feature	External Dimensions	632059002480 (mm) WLH
	Internal Dimensions	61605450224 (mm) WLH
	Folding state	220059002480 (mm) WLH
	Total mass	2000KG
Head of Cask	External roof	Galvanized plate of t0.5mm
Head of Cask	Internal ceiling	Interior ceiling of t831
Wallboard	Intermediate top insulation	Side top 50 EPS sandwich panel
	Sidewall, front, and rear wall panels	T50m m EPS sandwich board
	Internal partition	T50m m EPS sandwich board
	Internal toilet	Around 1700*1500mm (adjustment whole)
Floor Board	The middle floor	Fireproof glass magnesium floor 15mm
Floor Board	On both sides of the floor	18mm, Bamboo and wood flooring
Electrical System	Electrical wiring, installed in strict accordance with the moisture-proof specifications, all electricity All the device products shall conform to the CE certification. According to the circuit engineering specification, the Connection circuit, indoor: LED lamp, suction ceiling lamp, International III Hole socket, air conditioning socket, 63A leakage protector. Voltage 110V, 50HZ.
Ordinary Security door	Standard steel door/optional broken bridge aluminum double door opening
Window	Standard plastic steel window / optional broken bridge aluminum curtain wall + plastic steel single glass window push and pull 4 (920mm* 920mm)
House type	Standard without cabinet / optional console ( (2200600820 (mm) WLH)) Water basin ( (L800W 600H820 (mm) WLH))
Toilet	Optional hand basin (ceramic), toilet (ceramic), shower

Expandable Folding container houses are innovative prefabricated buildings that combine sustainability, efficiency, and flexibility. These modular homes are made in a controlled manufacturing environment off-site, in contrast to traditional residences, and are then constructed and shipped to their intended location. Their comparatively low cost, quick installation periods, and little environmental impact have made them more popular.

ZN House is a prefabricated, low-rise, green, energy-efficient, and low-carbon building manufacturer. We provide a new angle on the expandable container house architectural style. Customizable interior alternatives allow personal tastes to be accommodated, improving the quality of living space overall.

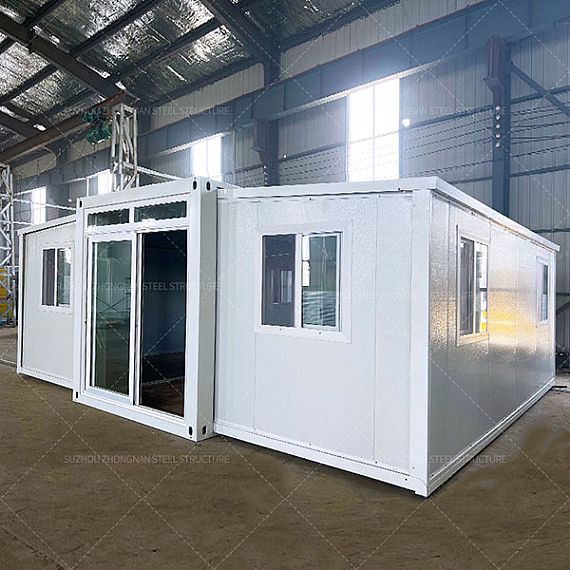

20ft Expandable Container House Manufactured by ZN house
