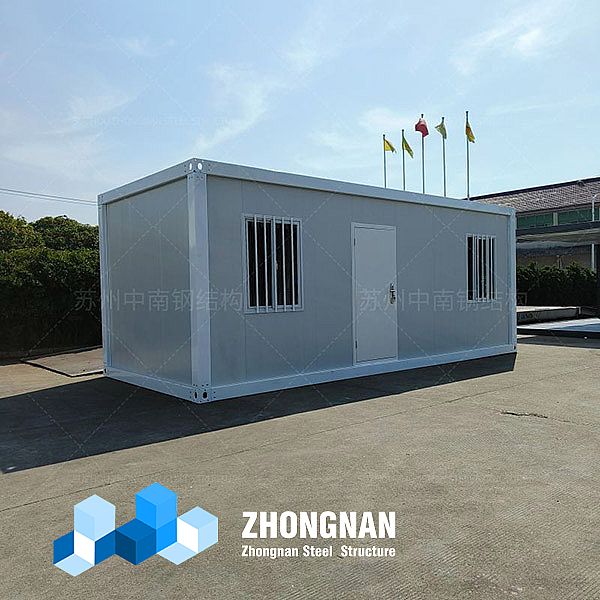

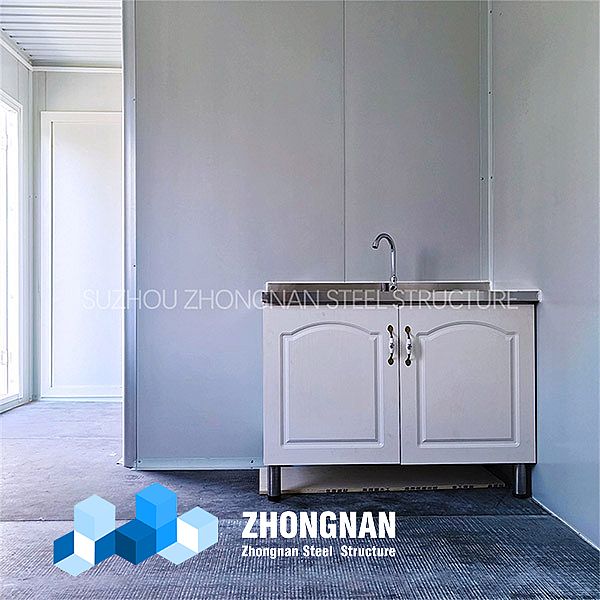

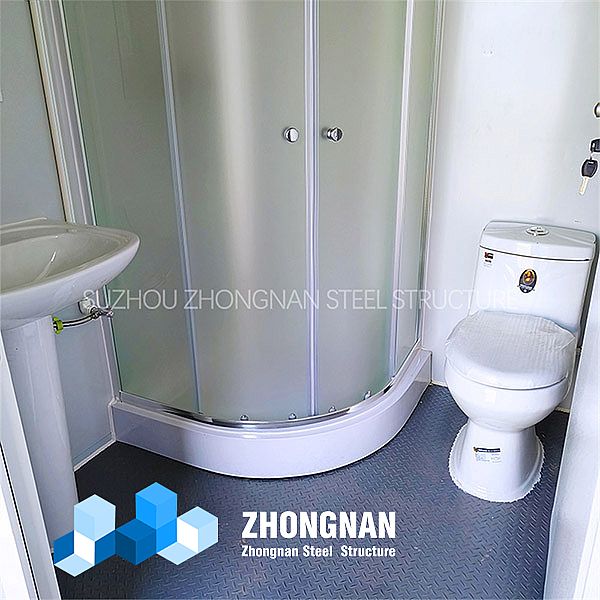

This is a prefabricated house customized for earthquake relief in Turkey. It is 7 meters long and 3 meters wide. There are toilets, shower rooms, wash basins, and so on. Two separate rooms can be used as shelters for victims of disasters.
REF: Trq001
Delivery Details
|
Product parameters |
||
|
Bottom |
Frame structure |
2.5mm thick profiled steel |
|
Floor |
MGO board, waterproof, fireproof (Option Fiber cement) |
|
|
Floor finishes |
1.8mm PVC flooring (extra cost) |
|
|
Roof |
Frame structure |
2.3mm thick profiled steel |
|
Outside cover |
0.426mm steel sheet |
|
|
Insulation |
glass wool |
|
|
Ceiling |
0.25mm steel sheet bottom tile |
|
|
Corner post |
4.5 cold rolled steel profile, galvanization, welded (160mm*160mm) |
|
|
Wall panel |
Sandwich panel with 50mm rock wool /tempered explosion-proof glass |
|
|
Window |
Aluminum alloy windows with dimensions 925mm*1200mm (3mm single glass) |
|
|
Door |
Steel door with dimensions 925mm*2035mm |
|
|
Electricity |
Light, Switch, Socket, distribution box, breaker, and wire |
|
|
Painting |
Automatic galvanizing and baking paint spray molding |
|
|
Exterior size |
7000 (L)*3000 (W)*2800 (H) |
|
