A prefab glass house embodies a stylish and modern design concept and is a portable container customized according to client requirements. It has a wide range of applications, serving as a prefabricated office, residential modular home, or even a prefabricated greenhouse.

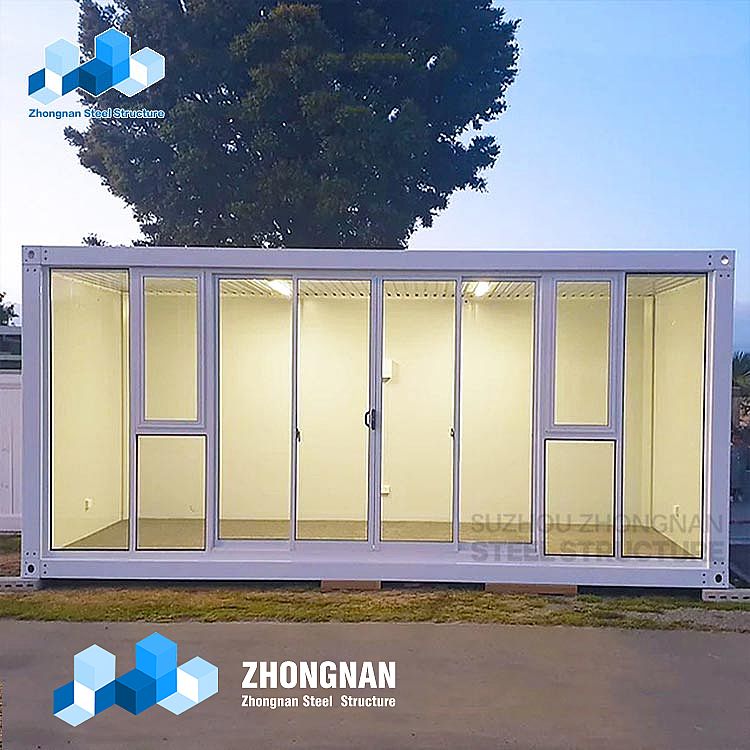

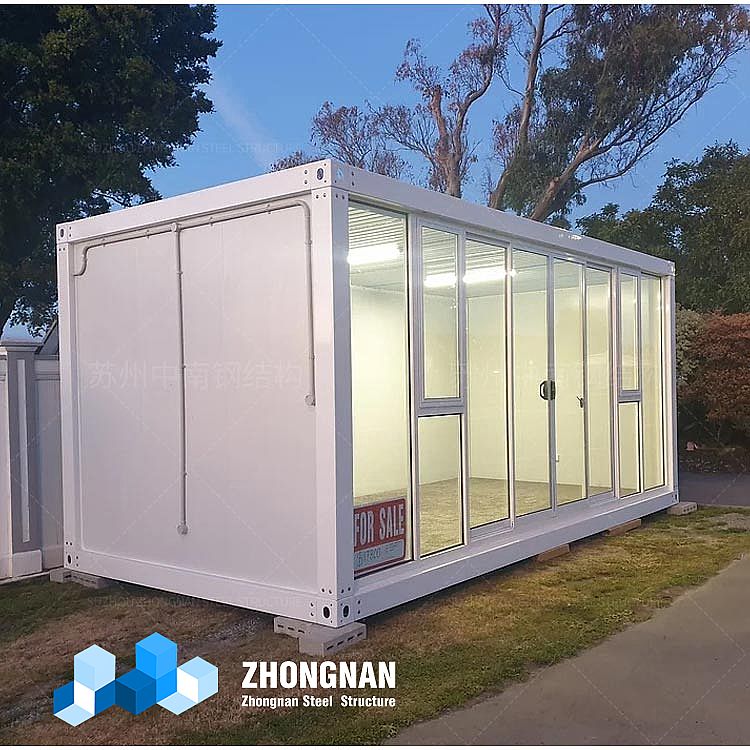

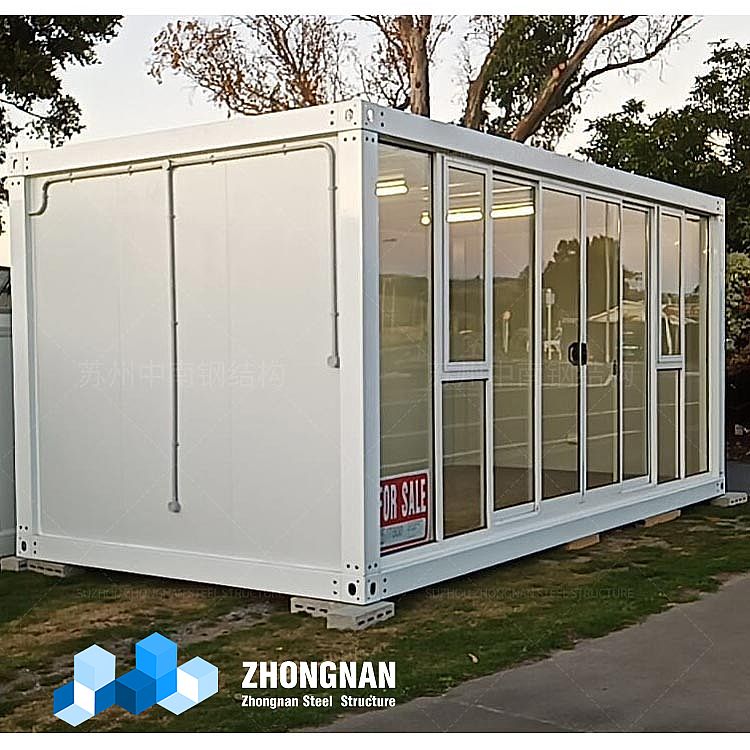

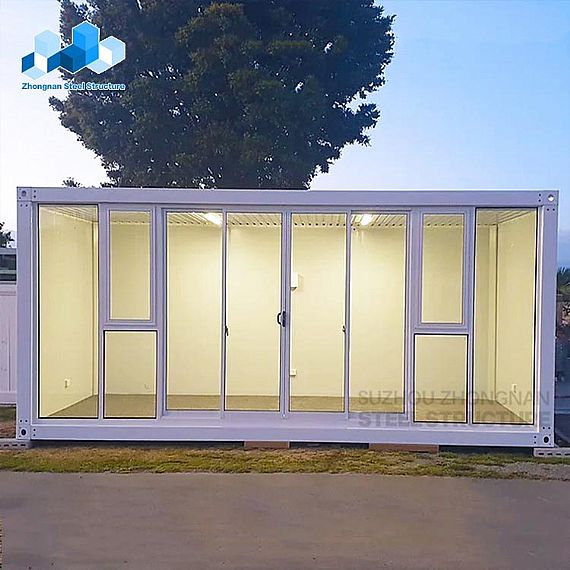

This is customized prefab house with glass wall for New Zealand customers. To increase the lighting in the room, we use transparent glass as the wall. At the same time, the doors and windows are also made of transparent glass, making the entire Prefab House look more upscale.
REF: Prefab Glass House
Delivery Details
Prefab Glass House Product Parameters: |
||
|---|---|---|
| Bottom | Frame structure | 2.5mm thick profiled steel |
| Floor | MGO board, waterproof, fireproof (Option Fiber cement) | |
| Floor finishes | 1.8mm PVC flooring (extra cost) | |
| Roof | Frame structure | 2.3mm thick profiled steel |
| Outside cover | 0.426mm steel sheet | |
| Insulation | glass wool | |
| Ceiling | 0.25mm steel sheet bottom tile | |
| Corner post | 4.5 cold rolled steel profile, galvanization, welded (160mm*160mm) | |
| Wall panel | Sandwich panel with 50mm rock wool /tempered explosion-proof glass | |
| Window | Aluminum alloy windows with dimensions 925mm*1200mm (3mm single glass) | |
| Door | Steel door with dimensions 925mm*2035mm | |
| Electricity | Light, Switch, Socket, distribution box, breaker, and wire | |
| Painting | Automatic galvanizing and baking paint spray molding | |
| Exterior size | 5950 (L)*3000 (W)*2800 (H) | |
The frame structure of this modern prefab glass house is made of 2.5mm thick profiled steel. Its doors, windows, and walls are made of tempered glass, offering a bright and high-end visual effect. Each modular prefab glass home includes prefabricated circuits that can be directly connected to external power systems for immediate use. The specifications for this custom glass home case are 5950 (L) * 3000 (W) * 2800 (H). In addition to standard 20ft and 40ft container houses, various sizes can be customized according to client needs.
1. The steel frame is fully galvanized steel, which has a long service life and is not easy to rust.

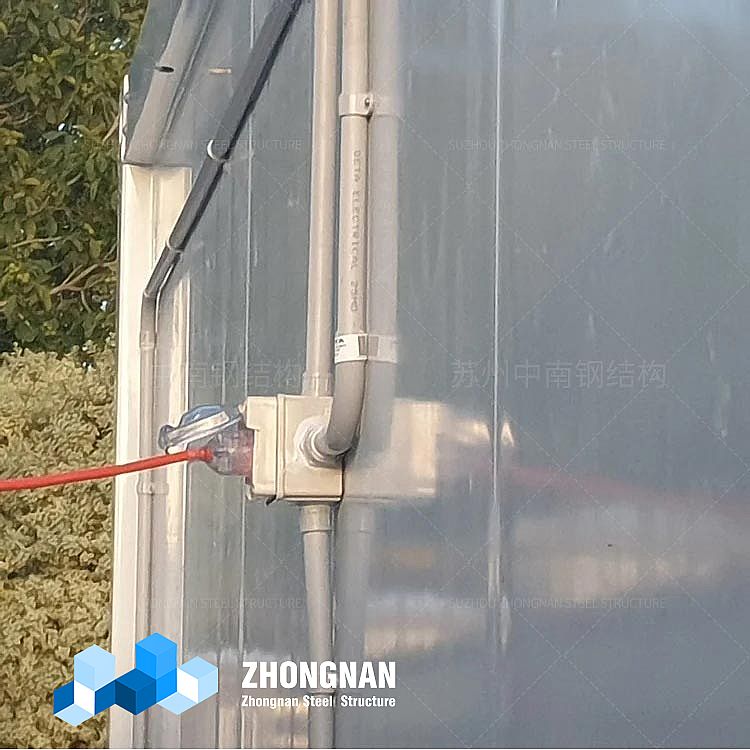

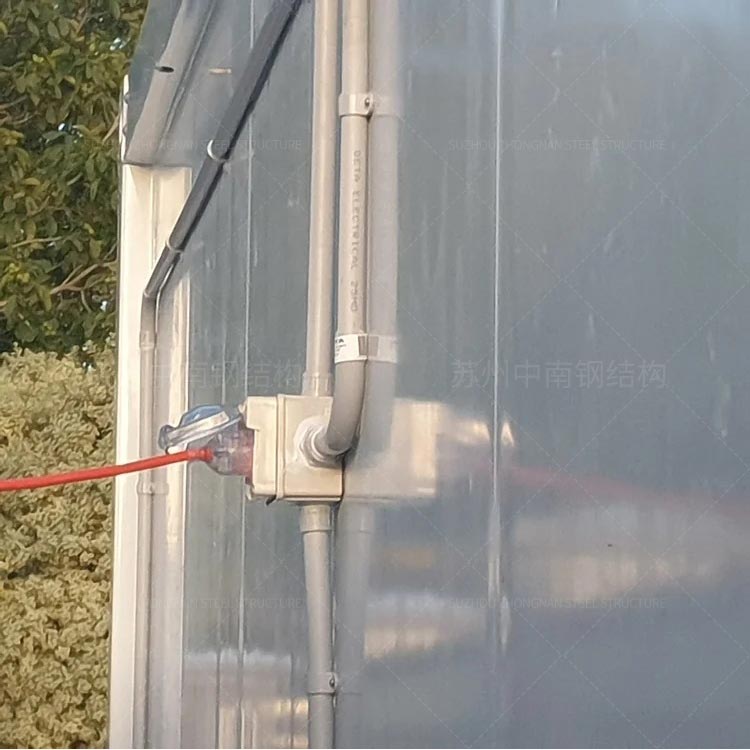

3. Each box contains prefabricated circuits, which can be directly connected to the external power system and used directly.
| We can customize more sizes than you need. | |||||||
|---|---|---|---|---|---|---|---|
| Model | External Dimensions | Internal Dimensions | Weight | ||||
| Length | Width | Height | Length | Width | Height | ||
| A | 3000mm | 1200mm | 2800mm | 2800mm | 1000mmm | 2520mm | 550KG |
| B | 3000mm | 1200mm | 2800mm | 2800mm | 1800mm | 2520mm | 700KG |
| C | 3000mm | 3000mm | 2800mm | 2800mm | 2800mm | 2520mm | 850KG |
| D | 4000mm | 3000mm | 2800mm | 4800mm | 2800mm | 2520mm | 1000KG |
| E | 5950mm | 1800mm | 2800mm | 5750mm | 1600mm | 2520mm | 1150KG |
| F (20FT) | 5950mm | 3000mm | 2800mm | 5750mm | 2800mm | 2520mm | 1300KG |
| G | 9000mm | 3000mm | 2800mm | 8800mm | 2800mm | 2520mm | 1450KG |
Are you looking for prefab glass homes for sale? Suzhou Zhongnan Steel Structure is a professional portable glass house manufacturer with a production workshop of over 10,000 square meters and automated production lines, ensuring strong production capabilities. Feel free to consult with us online to learn more about prefab home details.
