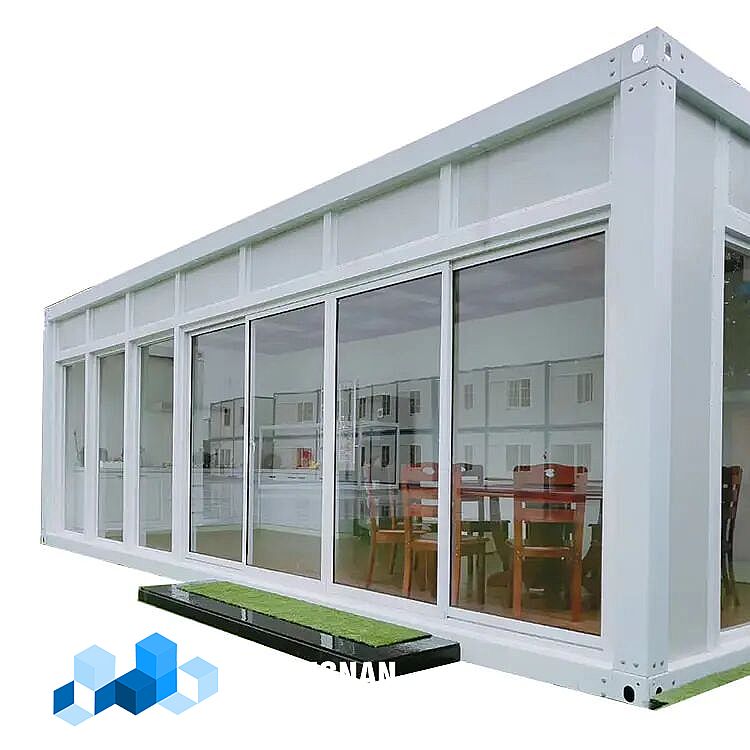

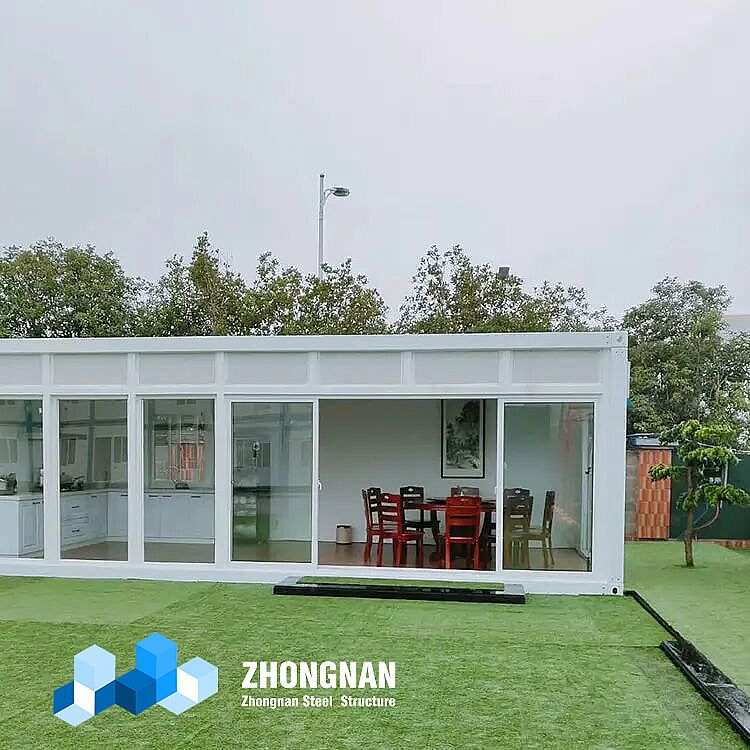

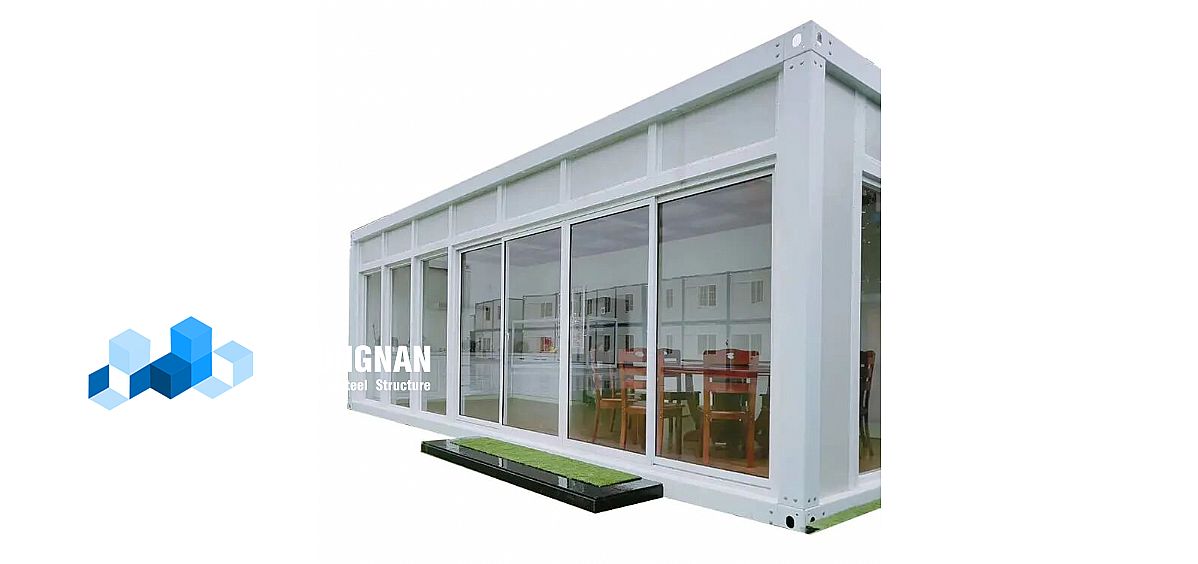

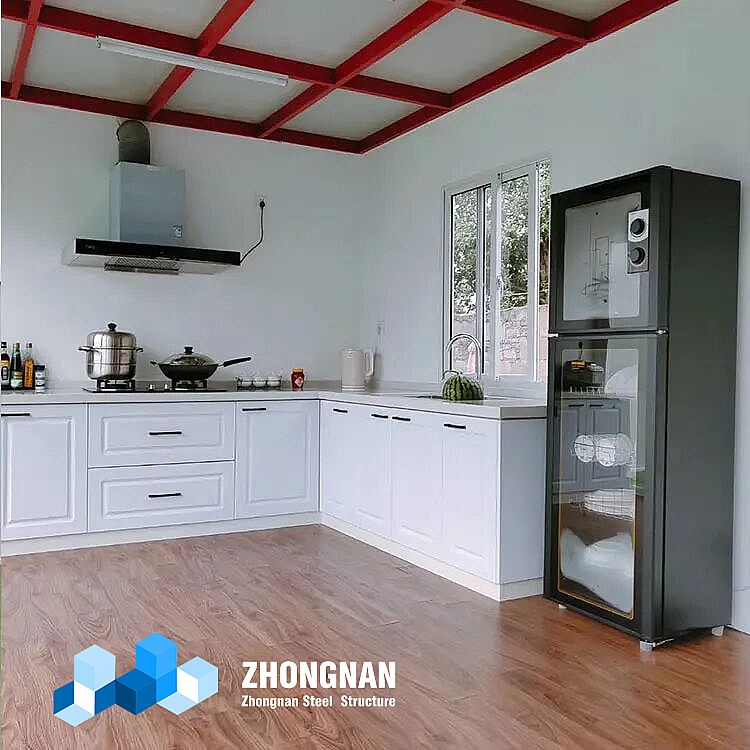

Custom modular container house is designed for the cooking and dining space at a construction site or other outdoor environment. The insulation panels and electrical system are installed in the standard container-size unit to create a comfortable and highly efficient kitchen environment.
Project Description
The modular container incorporates the globally embraced design concept and manufacturing process of modular buildings. It offers versatility, allowing single or multiple containers to be combined horizontally and vertically (up to 2-3 stories), facilitating easy installation and disassembly.

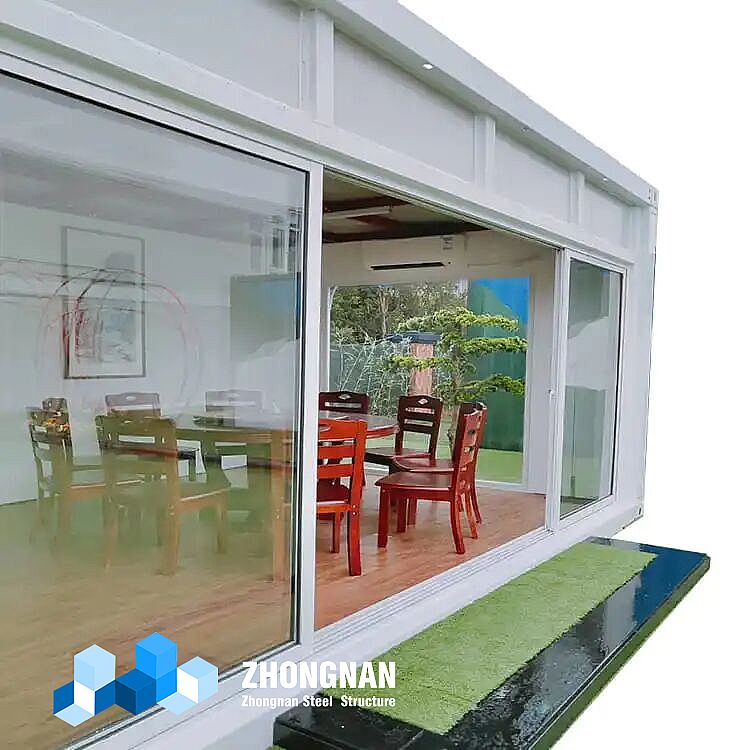

The prefabricated dining room is a customized container to be integrated with insulation, electrical, door & windows, and furniture. The big area windows can be selected for better natural lighting. The interior decoration is customized according to customer needs, including the installation of integrated suspended ceilings and hardwood flooring.
Modular container house product details | ||
Bottom | Frame structure | 3mm thick profiled steel |
Floor | Fiber cement, waterproof, fireproof (Option MGO) | |
Floor finishes | 2.0mm PVC flooring | |
Roof | Frame structure | 3mm thick profiled steel |
Outside cover | 0.45mm steel sheet | |
Insulation | 100mm glass wool | |
Ceiling | 0.5mm steel sheet bottom tile | |
Corner post | 5.0mm cold rolled steel profile, galvanization, welded (Flooring:210mm*150mm*200mm Bottom:210mm*150*200mm) | |
Wall panel | Sandwich panel with 75mm rock wool | |
Window | Sliding UPVC profiled windows with dimensions 800mm*1100mm (double glass) | |
Door | Steel door with dimension 840mm*2035mm | |
Electricity | Light, Switch, Socket, distribution box, breaker, and wire | |
Painting | Automatic galvanizing and baking paint spray molding | |
Exterior size | 6058 (L)*2438 (W)*2896 (H) |
